Basic Info.
Model NO.
HE-3600/HE-4800/HE-6000
Type
Washer
Voltage
380V
Power
7.5kw
Customized
Customized
Operation
Automatic
Applicable Industries
Food & Beverage Factory/Poultry Slaughterhouses
Function
Disinfection and Washing Baskets, Crates,etc.
Clean Way
Auto Cleaning System
Keywords
Crate Washing Machine
Features
High Efficiency
Material
304 Stainless Steel
Pump
High Pressure Pump
Control Box
PLC Control
Cleaning Speed
300-1000PCS/H
Water Tank
2-4
Transport Package
Packed in Film, Then Packed in Plywood Box
Specification
3600*1700*1600mm/4800*1700*1600
Trademark
Henger
Origin
Shandong China
HS Code
8422200000
Production Capacity
10 Sets/Month
Packaging & Delivery
Package Size
360.00cm * 170.00cm * 160.00cm
Package Gross Weight
500.000kg
Product Description

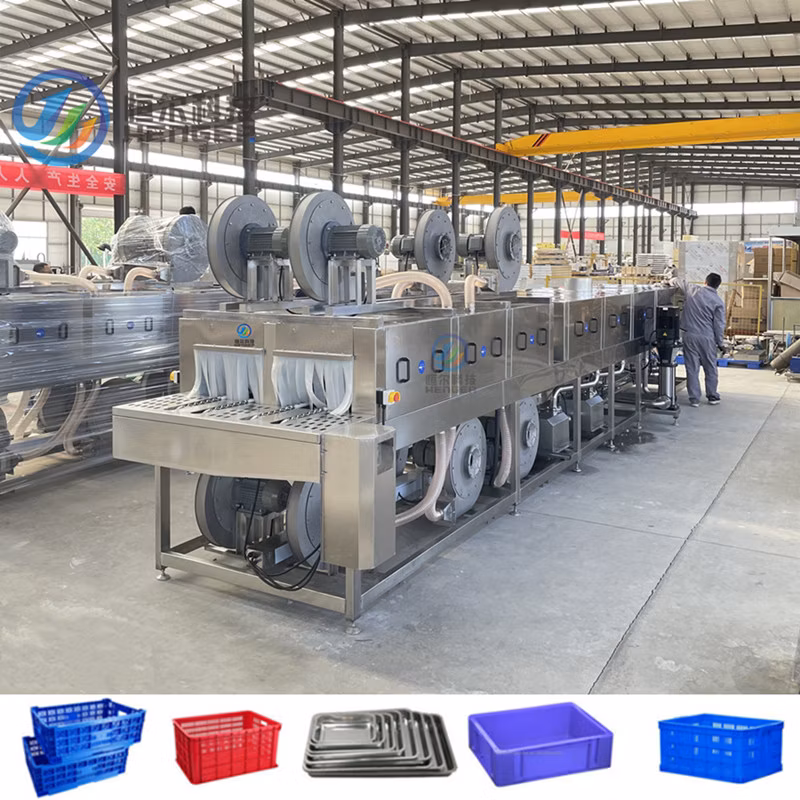

Industrial Automatic Pleastic Crate Washing Machine Basket/Tray/Crate Washer for Cleaning Pallet and Plate
Basket/Crate/Tray/Pallet/Bin/Box Washing Machine
Baket washing machine is used for the clean and sterilization of revolving basket,dishes ,egg trays ,mold etc.After cleaning the container has a number of colonies in line with the nation food safety requirements.Whole machine adopts famous components,moisture-proof ,water-proof.It can be directly for washing ,and it has low failure rate,stable performance.
Crate washing machine can replace traditional artificial cleaning,meet the requirements of cleaning a lot of turnover basket in food enterprises.Widely used in meat industry,baking industry,fast-food industry,aquaculture industry fruit and vegetable industry and other industries.
Tray/basket /crate /pallet Washer Advantages VS:
1.Whole frame is made of 304 stainless steel,durable and anti-corrosion.
1.Whole frame is made of 304 stainless steel,durable and anti-corrosion.
2.Big capacity with 300-1000 pcs baskets cleaning volume,two people can work 20 people workload,which save time and energy.
3.Water can be recycled ,with double layer filtration system,which can save a lot water consumption.
4.With adjustable floor feet, you can freely adjust the height of the machine.
4.With adjustable floor feet, you can freely adjust the height of the machine.
| High Pressure Washer Basket Washing Machine Pallet/Tray/Crate Washer | ||
| Unit | 3600Model | 4800model |
| Max.Box Size(W*H) | 650*350MM | 650*350MM |
| Washing Capacity | 300-600(adjustable) | 600-1000(adjustable) |
| Machine Overall Size | 3600*1700*1600MM | 4800*1700*1600MM |
| Num. Of water tank | 2 | 3 |
| Muti-Step Washing | Pre-washing Main-Washing Washing | Pre-washing Main-Washing Rinsing Washing |
| Water Recycle | Washing→MainWashing→Pre-washing | Washing→Rinsing→MainWashing→Pre-washing |
| Main-washing pump | 7.5kw | 7.5kw |
| Electric | Three-phase Electricity/Customized | Three-phase Electricity/Customized |
| Chain | Stainless Steel Cycle Chain | Stainless Steel Cycle Chain |
| Heating type | Intelligent Control Of Steam Heating | Intelligent Control Of Steam Heating |
| Steam interface | DN32 Stainless Steel Flange | DN32 Stainless Steel Flange |
| Exhaust outlet | Φ180mm*2 | Φ180mm*2 |
| Water outlet | Φ89mm | Φ89mm |
Fast And Efficient
The limit rod in the tunnel is easy to adjust, and the width and height of the cleaning channel can be flexibly changed, so as to be compatible with containers of various sizes. The high-pressure nozzle adopts a surround layout, the spray angle is adjustable, and the bottom nozzle can swing at a large angle to ensure sterilization and decontamination without leaving dead corners. The washing water temperature is adjustable to protect some containers that are not resistant to high temperatures and ensure non-destructive cleaning.
The limit rod in the tunnel is easy to adjust, and the width and height of the cleaning channel can be flexibly changed, so as to be compatible with containers of various sizes. The high-pressure nozzle adopts a surround layout, the spray angle is adjustable, and the bottom nozzle can swing at a large angle to ensure sterilization and decontamination without leaving dead corners. The washing water temperature is adjustable to protect some containers that are not resistant to high temperatures and ensure non-destructive cleaning.
Safety And Bacteria Control
The equipment focuses on hygienic protection and integrates multiple bacteria control designs. Multiple high-temperature cleaning processes and full-coverage high-pressure spraying ensure that the container is fully in contact with high-temperature water for more thorough sterilization. The water tank has a dual filtration function to improve the cleanliness of the circulating water and ensure the hygiene of the container after cleaning; the track is equipped with a dedicated cleaning nozzle to keep the chain clean and avoid cross contamination with the container.
The equipment focuses on hygienic protection and integrates multiple bacteria control designs. Multiple high-temperature cleaning processes and full-coverage high-pressure spraying ensure that the container is fully in contact with high-temperature water for more thorough sterilization. The water tank has a dual filtration function to improve the cleanliness of the circulating water and ensure the hygiene of the container after cleaning; the track is equipped with a dedicated cleaning nozzle to keep the chain clean and avoid cross contamination with the container.
Professional Scheme Design
Professional Scheme Design
Customized for Saudi Arabian customers
-
Customized for Malaysian customers
-
Customized for American customers
-
Customized for Bangladesh customers
-
Customized for Thailand customers
Customized for Australian customers
| HE-3600 basket washing machine(Standard size) | Film-packed and then packed in plywood crates |
| HE-4800 crate washing machine | Film-packed and then loaded into containers |
1.Where is your factory located?
Henger Machinery factory is located in Binzhou City, Shandong Province.Welcome to visit our factory.
2. How can you guarantee your product quality?
From raw material purchase to production,Henger company has strict restriction.And we will provide 1 year warranty time for all the products .ISO 9001 and CE certification can be provided.
And we have our excellent service team all over the world.We offer excellent after-sales service.
And we have our excellent service team all over the world.We offer excellent after-sales service.
3. How long is one order production time?
After you place a order,the production handling time is about 10-25 days.It will subject to our factory production schedule.
4. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.Special order for your own factory.
5.Why our customers trust and choose us?
1.Manufacturer
2.3D Modeling and Design
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
6.How can you make sure the deal safe?
Insurance order payment is preferred on Made-In-China platform. TT and credit card payment can be accepted.
After you place a order,the production handling time is about 10-25 days.It will subject to our factory production schedule.
4. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.Special order for your own factory.
5.Why our customers trust and choose us?
1.Manufacturer
2.3D Modeling and Design
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
6.How can you make sure the deal safe?
Insurance order payment is preferred on Made-In-China platform. TT and credit card payment can be accepted.
If you are interested in our tray/crate washer,please contact Amy freely.Thanks.
