Basic Info.
Model NO.
BK-1200
Certification
CE, FDA, MSDS, ISO13485
Group
Middle-aged and Old
Model
Bk-1200
Throughput
800tests/Hour, 1200tests/Hour with ISE(Optional)
Analysis Method
End-Point, Fixed-Time, Rate(Kinetic), Turbidimetry
Sample Positions
150sample Positions
Reagent Position
180reagent Positions
Probe
Coating,Withanti-Collision Function
Probe Washing
Automatic Washing Interior and Exterior
Reagent Cooling
Refrigerated Tray with Independent Switch
Temperature Control
Water Bath37±0.1ºC,
Cuvettes
160reusable Cuvettes
Mixer Probe
Independent Stirring
Washing
Automatic Cuvettes Washing
Stat Function
Yes
Light Source
12V/20W Halogen Lamp/Fiber Bragg Grating Optional
Spectrophotometry
Post-Spectral Spectrophotometry
Transport Package
Cartoon Package
Specification
800Tests/hour, 1200Tests/hour
Trademark
BIOBASE
Origin
China
Production Capacity
50000 PCS Per Year
Product Description

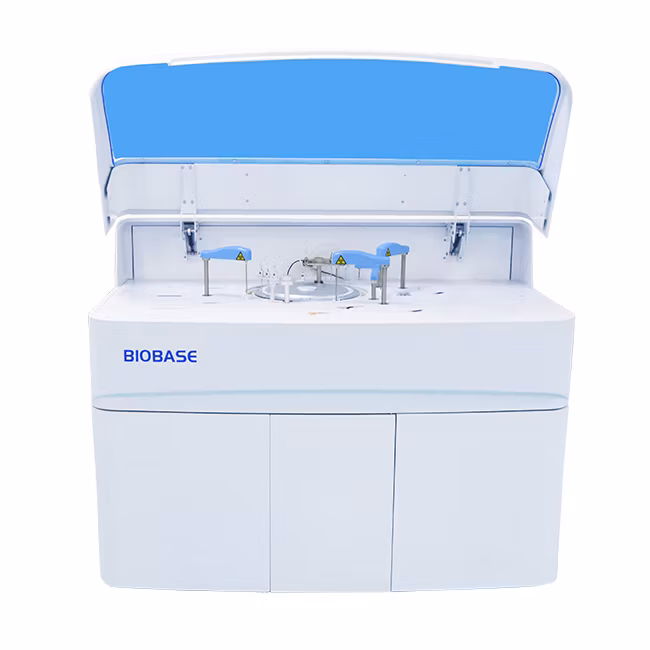

Biobase Medical Used Diagnostic Equipment 1200 Tests/Hour Auto Chemistry Analyzer
.150 Sample positions.
. 160 Reaction cuvettes.
. 180 Refrigerated reagent positions.
. Optical filter/fiber bragg grating selectable.
. 800 Tests per hour 1200 Tests with ISE module.
. Built-in sample barcode system optional.
.Probe with anti-collision function, liquid level detection function.
| Model | BK-1200 | |
| Overall Performance | Throughput | 800Tests/hour, 1200Tests/hour with ISE(Optional) |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
| | | |
| Sample & Reagent System | Sample Positions | 150sample positions |
| Reagent Position | 180reagent positions | |
| Probe | coating,withanti-collision function,Liquid level detectionfunction | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | Refrigerated tray with independent switch | |
| Reaction System | Temperature Control | Water bath37±0.1ºC, real-time monitoring |
| Cuvettes | 160reusable cuvettes, optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT function | YES | |
| Optical System | Light Source | 12V/20W halogen lamp/fiber bragg grating optional |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 12 wavelength from 340~800nm | |
| Absorbance | -0.3~3.0Abs | |
| Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10 , 32or 64bit |
| LIS System | Bi-direction,support HL7 protocol | |
| Interface | LAN port access | |
| | Printer | External,multiple reporting mode available |
| Working Conditions | Power Supply | AC220V±10% 50/60Hz, 110V±10% 60Hz, 1500W |
| Temperature | 10~30ºC | |
| Water Consumption | Deionized water:20L/H | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 1360*791*1157mm |
| Net Weight | 286kg | |
| Package Size (W*D*H) | 1718*929*1434mm | |
| Gross Weight | 390kg | |
