Product Description

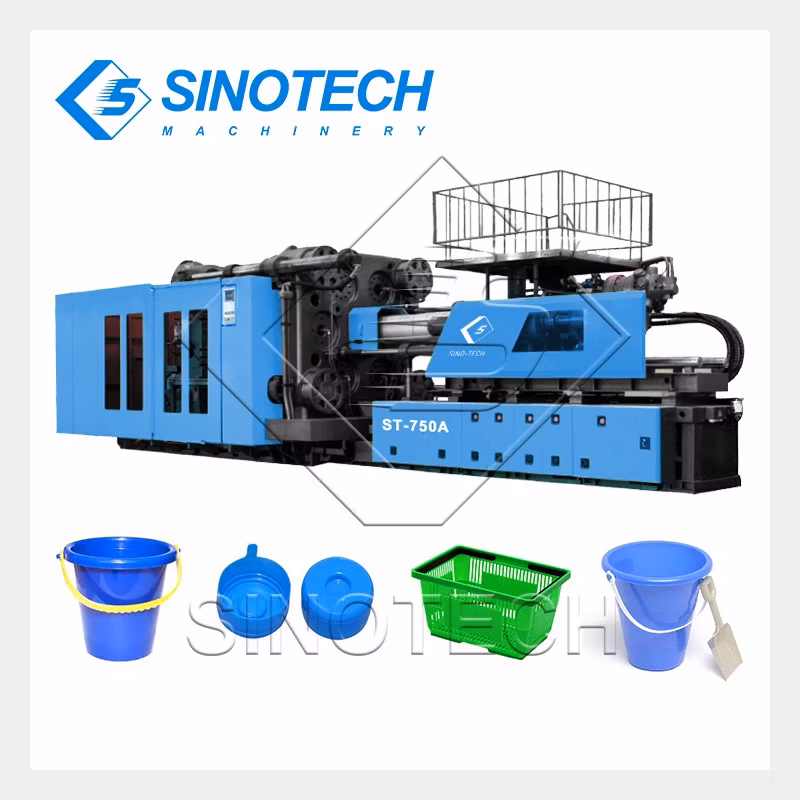

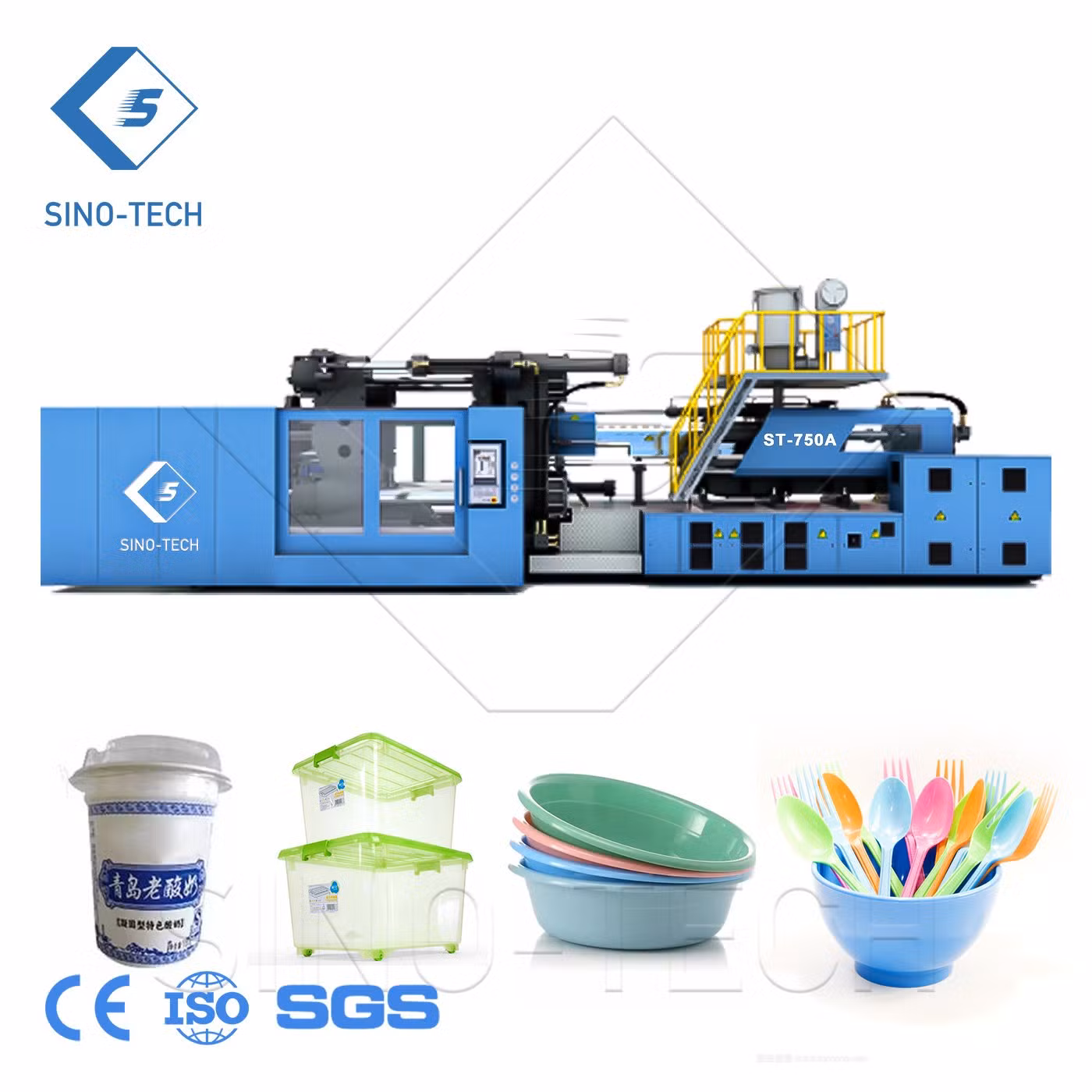

1000ton Servo 15L 20L Painting Plastic Injection Moulding Molding Machine for Plastic Basket Bucket Washing Basin PE Fitting Making
Sinotech supply all kinds of injection molding machines from 50T to 3000T, including color chips making machine, energy saving injection molding machine, gears making machine, dual clear color injection molding machine, bakelite injection molding machine, PET preform injection molding machine, Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, screw barrel for injection molding machine etc.
SINO-TECH ST-1000A injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-1000A with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3. Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
| ITEM | UNIT | ST-1000A | |||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 100 | 110 | 120 | 130 |
| SCREW L/D RATIO | L/D | 24.2 | 22 | 20.2 | 18.6 |
| THEORETICAL SHOT VOLUME | cm³ | 4083 | 4941 | 5880 | 6901 |
| SHOT WEIGHT99(PS) | g | 3715 | 4496 | 5350 | 6280 |
| INJECTION PRESSURE | Mpa | 206 | 171 | 143 | 122 |
| THEORETICAINIECTION RATE(PS) | g/s | 695 | 841 | 1001 | 1175 |
| PLASTICISING CAPACITY | g/s | 96 | 116 | 130 | 148 |
| SCREW TORQUE | N.m | 8690 | |||
| MAX.SCREW ROTATE SPEED | r/min | 110 | |||
| INJECTION STROKE | mm | 520 | |||
| CLAMPING UNIT | |||||
| MAX.CLAMPING FORCE | KN | 1000 | |||
| MAX.OPENING STROKE | mm | 1160 | |||
| SPACE BETWEEN TIE BARS | mm | 1110*1110 | |||
| MOULD HEIGHT | mm | 450-1200 | |||
| MAX DAYLIGHT | mm | 2360 | |||
| EJECTOR FORCE | KN | 245 | |||
| EJECTOR STROKE | mm | 350 | |||
| EJECTOR QUANTITY | KN | 21 | |||
| OTHER | |||||
| PUMP MOTOR POWER | KW | 90 | |||
| PUMP PRESSURE | Mpa | 16 | |||
| HEATING POWER | KW | 68.45 | |||
| HEATING ZONE | 6 | ||||
| SIZE | m | 12.38*2.8*3.5 | |||
| NET WEIGHT | t | 60 | |||
| OIL TANK CAPACITY | L | 1700 | |||
| INTERNATIONAL DESIGNATION | 10000-8410 | ||||
